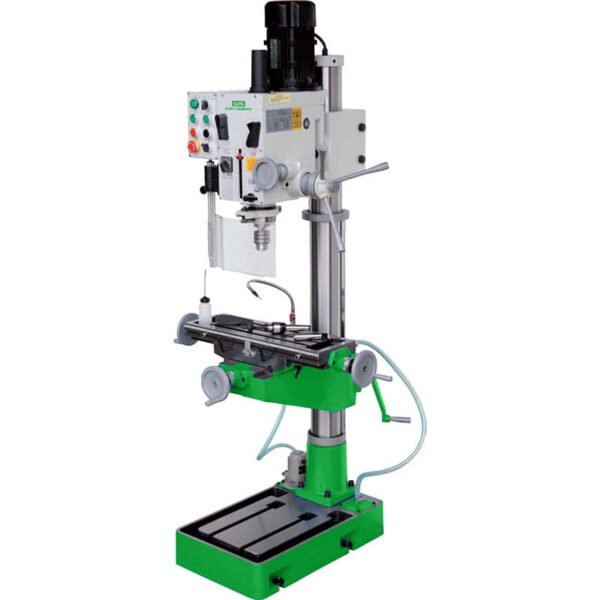

Drilling and Milling Machine ZX40

Specification

Art.	ZX40
Drilling capacity cast iron/steel	40mm/32mm
Milling capacity face/end	80/32mm
Tapping capacity cast iron/steel	24mm/20mm
Spindle taper	MT4
Spindle travel	130mm
Spindle speed	6/75-1600rpm
Table size	600x190mm
Base size	650x450mm
Table longitudinal travel	190mm
Table cross travel	370mm
Max. distance spindle/column	275mm
Max. distance spindle/table	610mm
Max. distance spindle/base	1180mm
Column diameter	115mm
Power	1.1KW
NW/GW	340/390kg
Packing size	82x72x183cm
