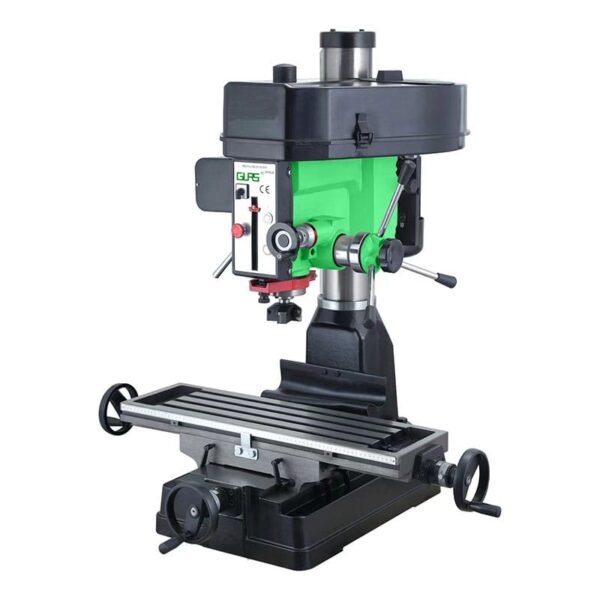

| Art. | ZX7032 |
| Max. drilling diameter | 32mm |
| Max. face milling diameter | 80mm |
| Max. end milling diameter | 22mm |
| Spindle taper | MT3 |
| Spindle travel | 130mm |
| Spindle speed | 12/100-2150rpm |
| Table size | 730x210mm |
| Table longitudinal travel | 500mm |
| Table cross travel | 175mm |
| Max. distance spindle/column | 200mm |
| Max. distance spindle/table | 450mm |
| Base size | 605x400mm |
| Headstock travel | 315mm |
| Power | 1500W |
| NW/GW | 280/310kg |
| Packing size | 79x72x112cm |
