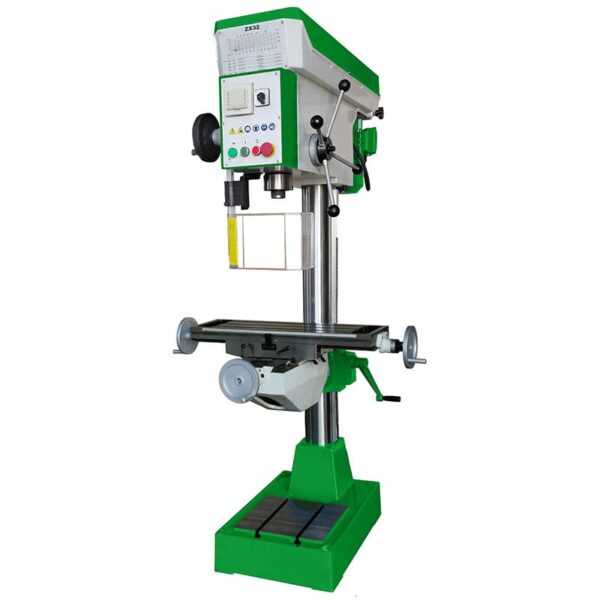

Drilling and Milling Machine ZX32

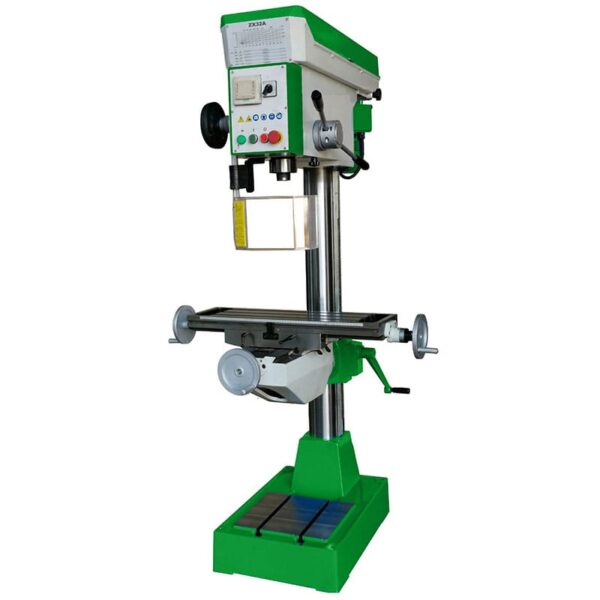

- Auto feed model ZX32A available
Specification
| Art. | ZX32 |
| Drilling capacity | 32mm |
| Tapping capacity | 24mm |
| Face milling capacity | 80mm |
| Spindle taper | MT4 |
| Spindle travel | 130mm |
| Spindle speed | 100-2200rpm |
| Table size | 730x210mm |
| Table longitudinal travel | 480mm |
| Table cross travel | 220mm |
| Max. distance spindle/column | 300mm |
| Max. distance spindle/table | 700mm |
| Column diameter | 123mm |
| Power | 1.1/1.9KW |
| NW/GW | 410/470kg |
| Packing size | 115x62x205cm |
