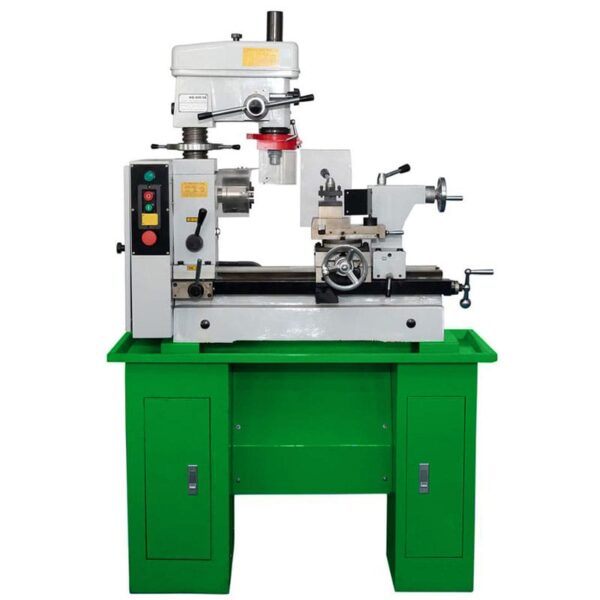

| Art. | HQ400/3A |
| Swing over bed | 420mm |
| Distance between centers | 400mm |
| Max. longitudinal travel | 380mm |
| Max. cross travel | 120mm |
| Taper of spindle | MT3 |
| Spindle hole | 20mm |
| Step of spindle speed | 7 |
| Range of spindle speed | 160-1360rpm |
| Tailstock sleeve travel | 70mm |
| Tailstock sleeve taper | MT3 |
| Metric thread range | 0.2-3mm |
| Inch thread range | 8-120TPI |
| Max. drilling capacity | 15mm |
| Worktable size | 200x150mm |
| Max. end mill | 20mm |
| Max. face mill | 63mm |
| Spindle travel | 80mm |
| Spindle taper | MT3 |
| Step of spindle speed | 14 |
| Range of spindle speed | 117-1300rpm |
| Swivel of headstock | ±360° |
| Motor power | 550W |
| NW/GW | 180/215kg |
| Packing size | 103×58×110cm |
