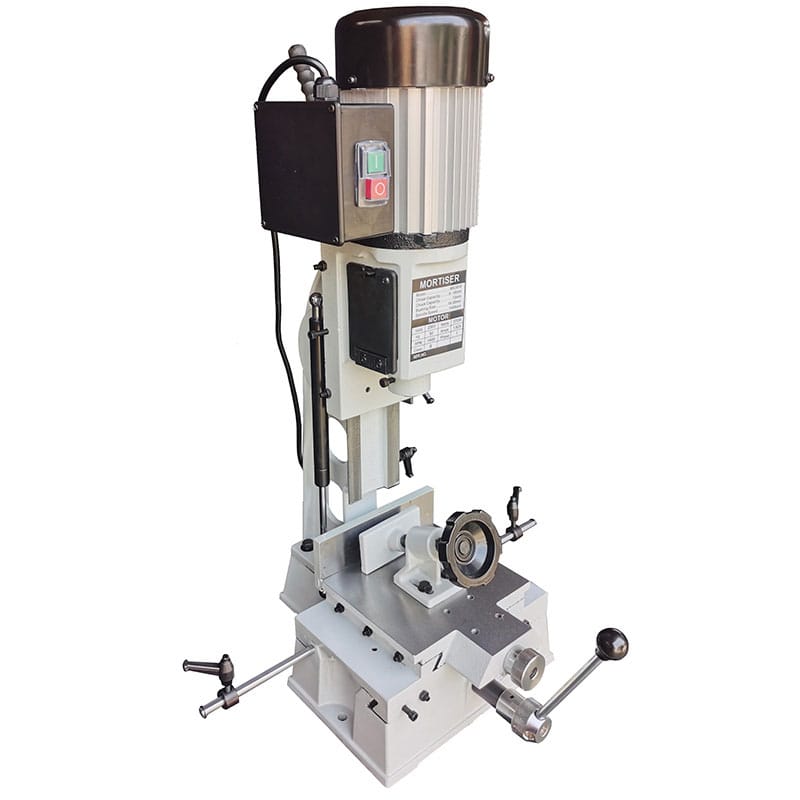

| Art. | MS3816CE |
| Chisel capacity | 6-16mm |
| Max. mortising depth | 76mm |
| Drill chuck capacity | 1-13mm |
| Max. clamping width | 80mm |
| Max. distance from spindle to fence | 50mm |
| Max. distance from chisel to table | 110mm |
| Overall height | 800mm |
| Motor | 370W |
| Spindle speed | 1400rpm |
| NW/GW | 39/41kg |
| Packing size | 67x45x34cm |
| or | |
| Base part: | |
| NW/GW | 20/21kg |
| Packing size | 44x32x20cm |
| Column part: | |
| NW/GW | 19/20kg |
| Packing size | 50×37.5x22cm |
