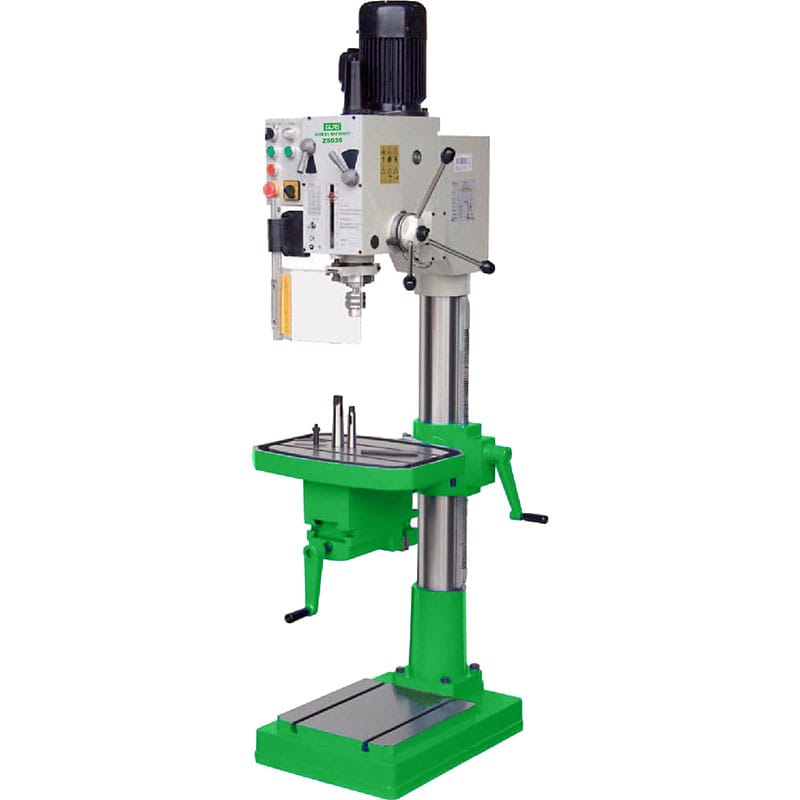

| Art. | Z5035 |
| Drilling capacity cast iron/steel | 40/35mm |
| Tapping capacity cast iron/steel | 24/22mm |
| Spindle taper | MT4 |
| Spindle travel | 130mm |
| Spindle speed | 12/75-3200rpm |
| Table size | 500x360mm |
| Base size | 670x470mm |
| Max. distance spindle/column | 320mm |
| Max. distance spindle/base | 1140mm |
| Max. distance spindle/table | 685mm |
| Column diameter | 125mm |
| Motor power | 1.1/1.5KW |
| NW/GW | 400/470kg |
| Packing size | 67x82x210cm |
