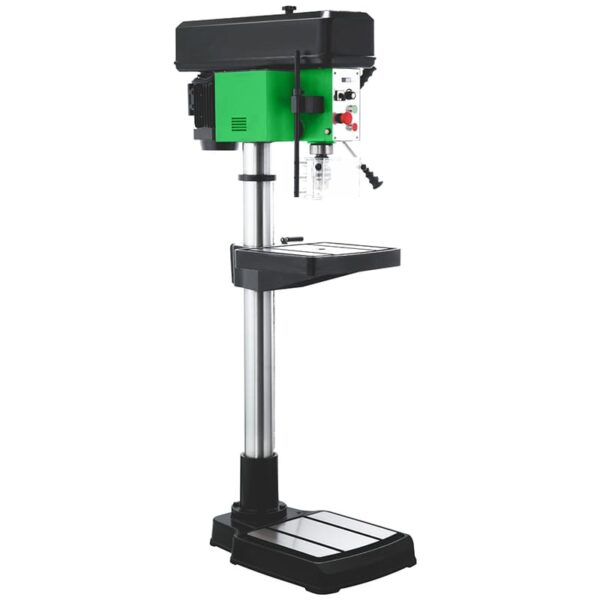

32mm DrillingTapping Machine ZS2032F-VS
- Variable speed with 2 steps
- Digital display
- With mandatory reversal function
Specification
| Art. | ZS2032F-VS |
| Drill capacity | 32mm |
| Tapping capacity | M16 |
| Chuck capacity | B16/1-16mm |
| Column diameter | 98mm |
| Spindle travel | 135mm |
| Swing | 510mm |
| Max. distance spindle to table | 860mm |
| Max. distance spindle to base | 1200mm |
| Spindle taper | MT3 |
| Speed range | 2/0-2100rpm |
| Table size | 410x380mm |
| Base size | 650x440mm |
| Overall height | 1770mm |
| Motor | 1100W |
| NW/GW | 231/238kg |
| Packing size | 160x71x61cm |
