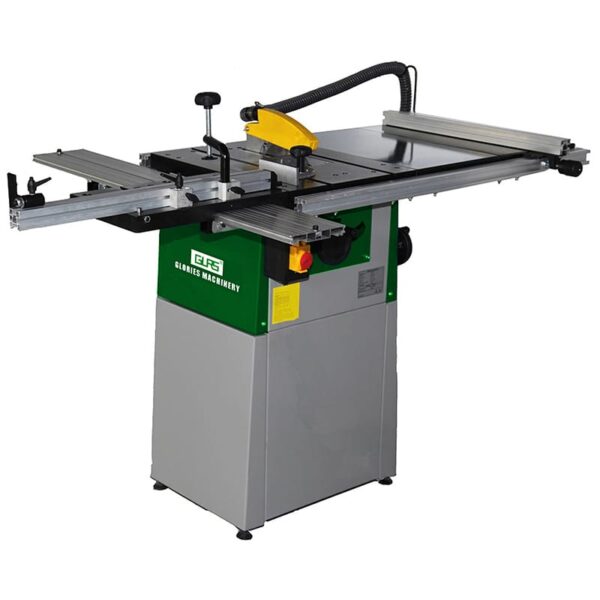

200mm 8inch table saw TS200

Compact structure
Cast iron main table and sliding table
Economical steel saw unit
Extension table expand rip cut width
Bearing guided sliding table with a sturdy fence locked anywhere between 90 and 45 degrees

Specification

Art.	TS200
Saw blade	200mm
Saw blade speed	4750rpm
Saw blade tilt	0°-45°
Max. cutting height 90°/45°	60/42mm
Max. cutting width to rip fence	750mm
Main table	530x400mm
Extension table	530x300mm
	530x300mm
Table height	870mm
Sliding carriage	400x250mm
Sliding carriage travel	720mm
Dust extraction outlet	100mm
Power	1100W
NW/GW	87/101kg
Packing size	65x49x47cm
	63x41x25cm
	102x18x9cm
